EcoKettle Pro
Engineering Simulation Package — complete design deliverables from 3D modelling through digital twin simulation to production-ready engineering drawings
Project Statistics
Engineering Deliverables
3D Model
Interactive three.js 3D model with orbit controls, material inspection, and exploded view. Full geometric representation of the EcoKettle Pro assembly including vacuum chamber, heating element, and control unit.
LiveDigital Twin Simulation
Real-time thermal simulation modelling heat transfer through the vacuum-insulated double wall, energy consumption curves, and temperature profiles across heating and retention cycles.
LivePrototype Demo
Interactive UI prototype demonstrating the EcoKettle Pro user experience: temperature selection, eco-mode activation, energy dashboard, and smart scheduling interface.
LiveEngineering Drawings
Production-ready technical drawings with dimensioned cross-sections, GD&T annotations, bill of materials, and manufacturing tolerances conforming to ISO 2768 standards.
LiveBlender Assembly Simulation

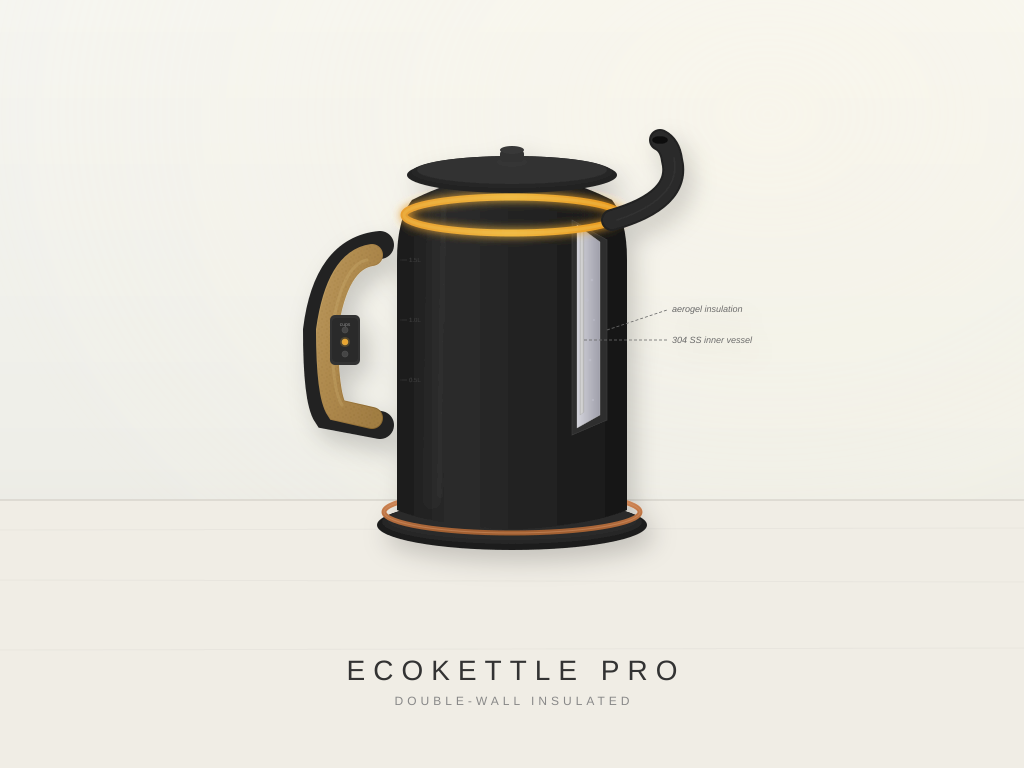

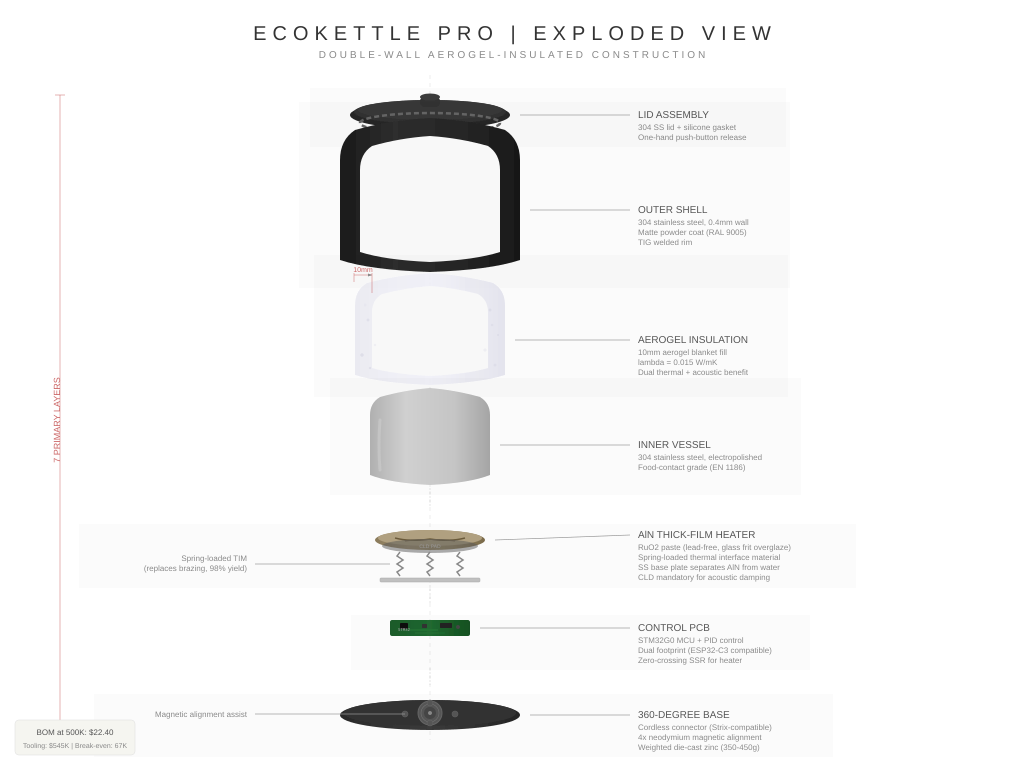

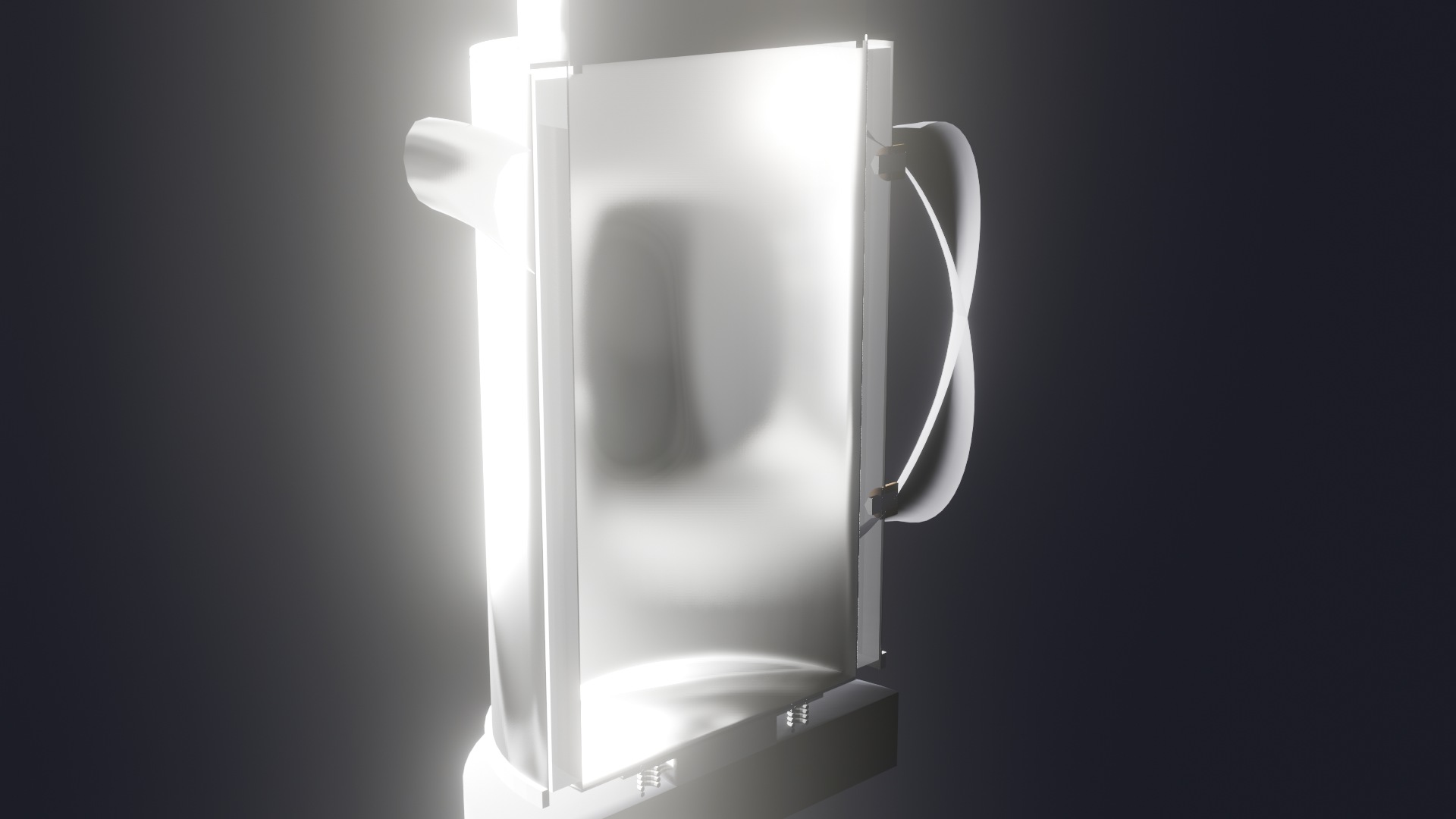

High-fidelity Blender renders including hero assembly view, exploded component diagram, and detailed cross-section revealing the vacuum-insulated double-wall construction.
LiveThermal Analysis

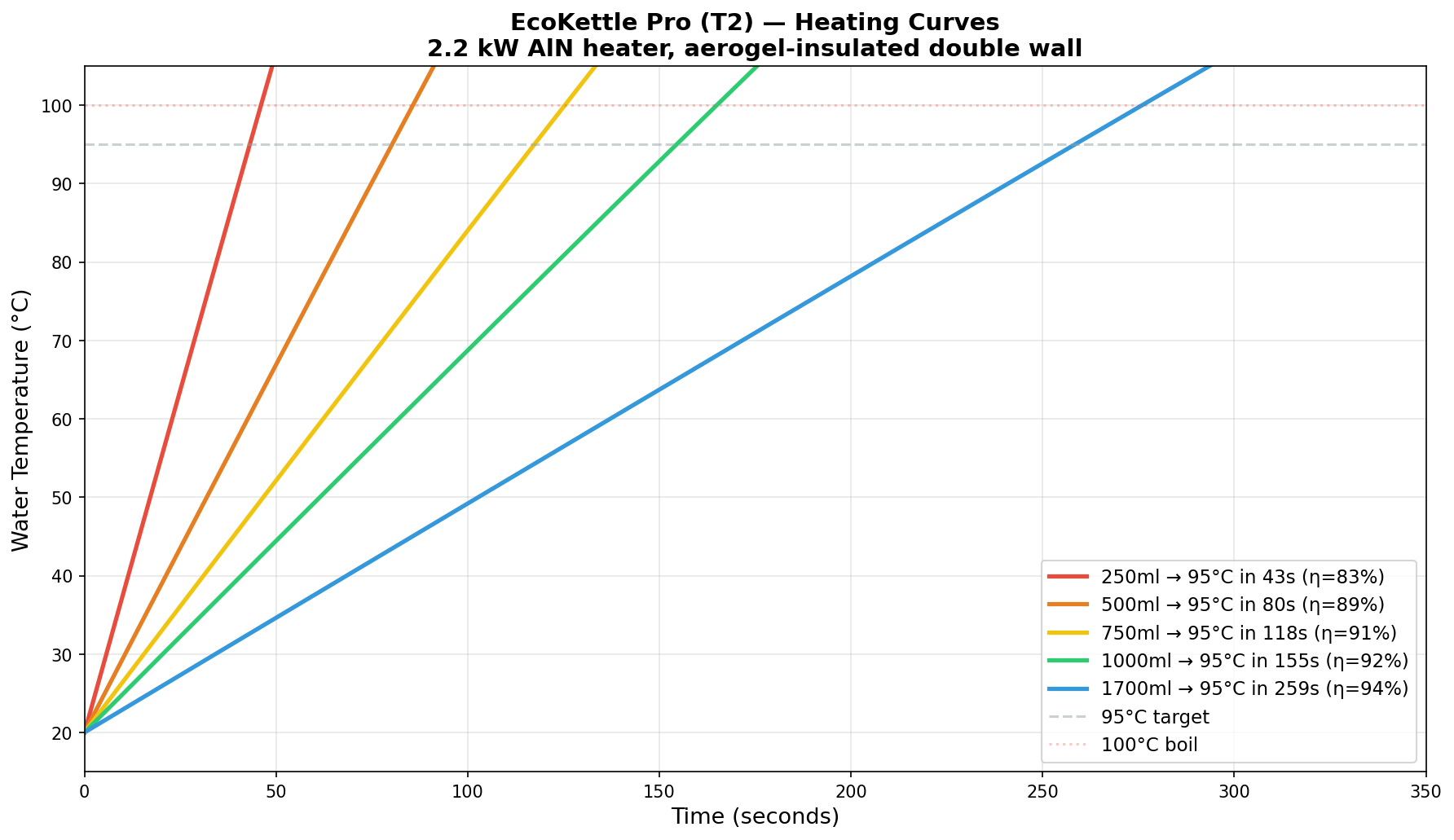

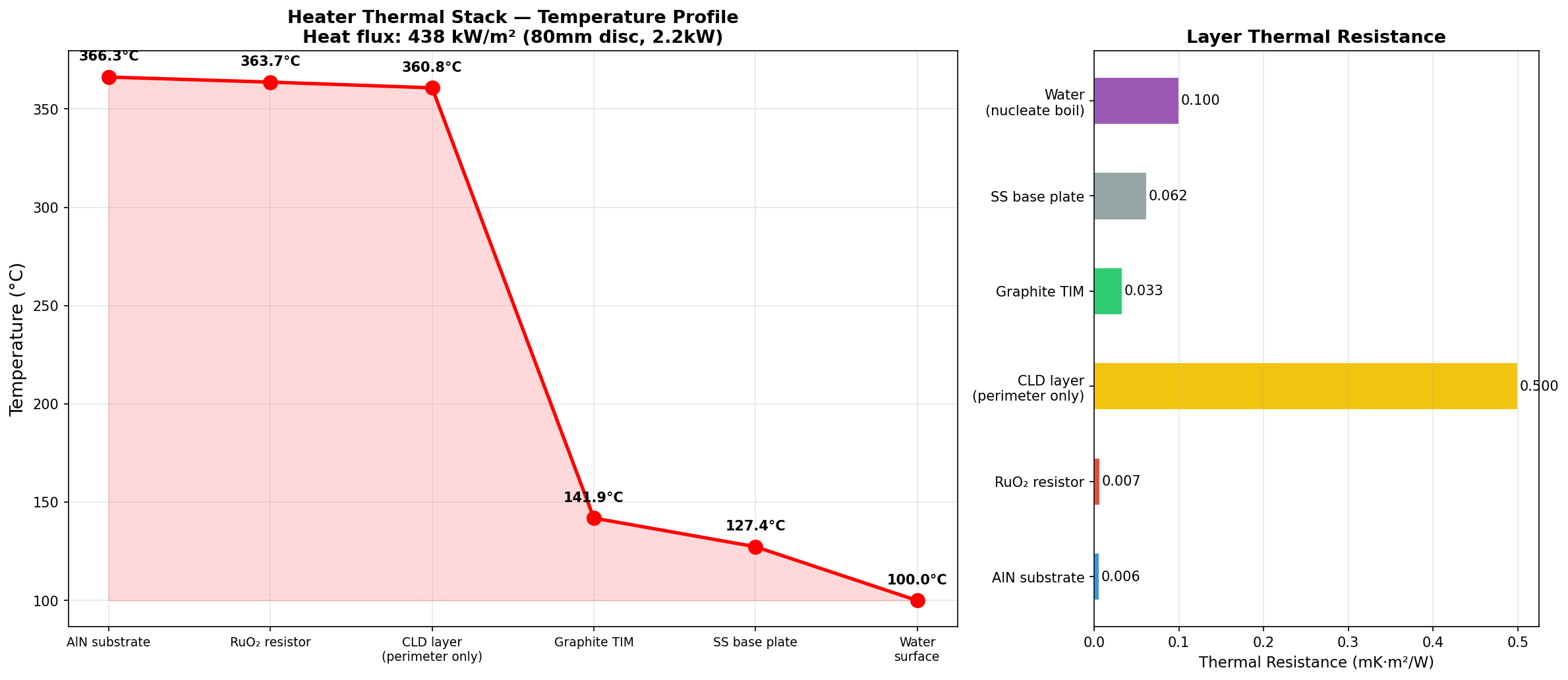

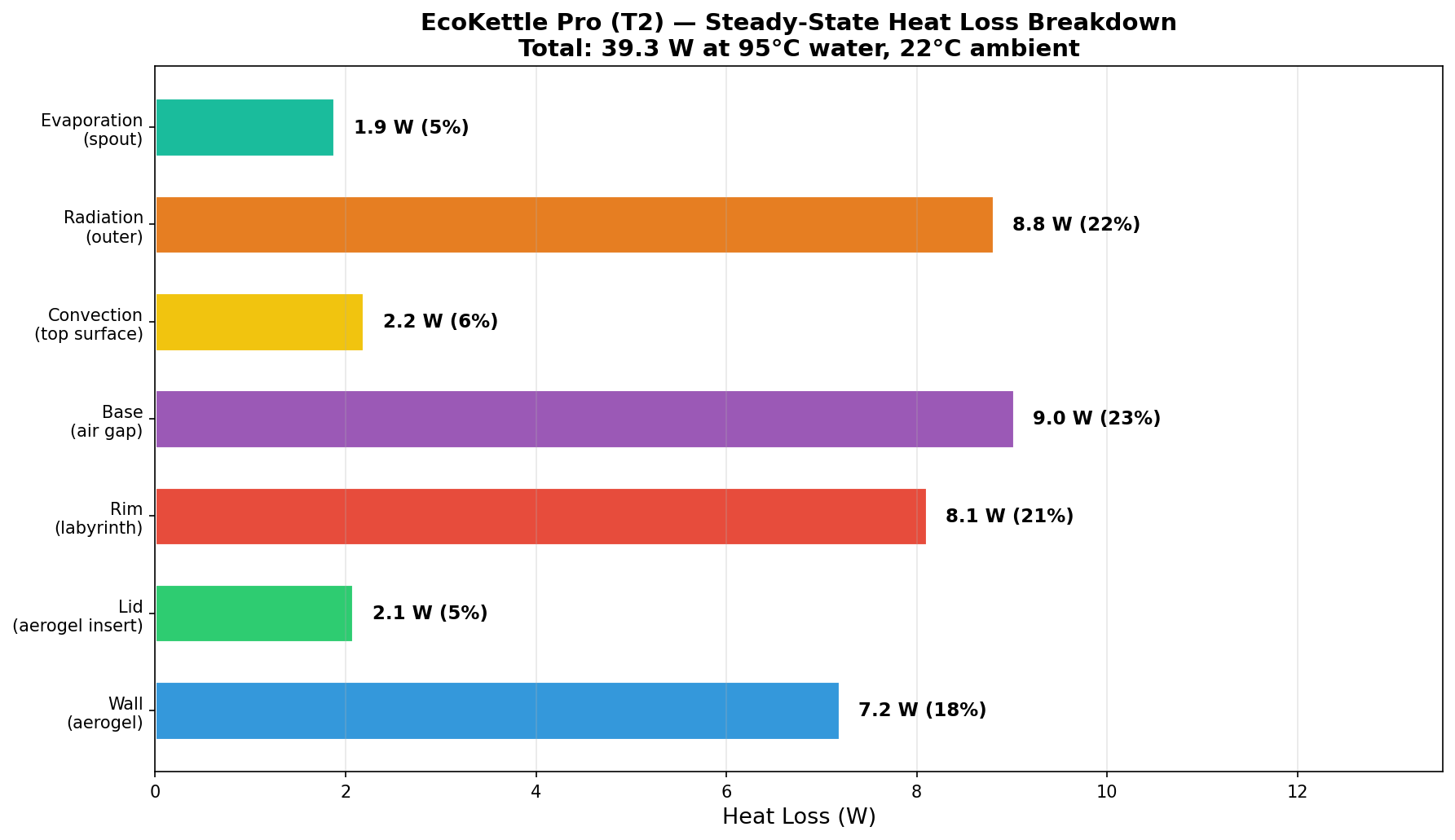

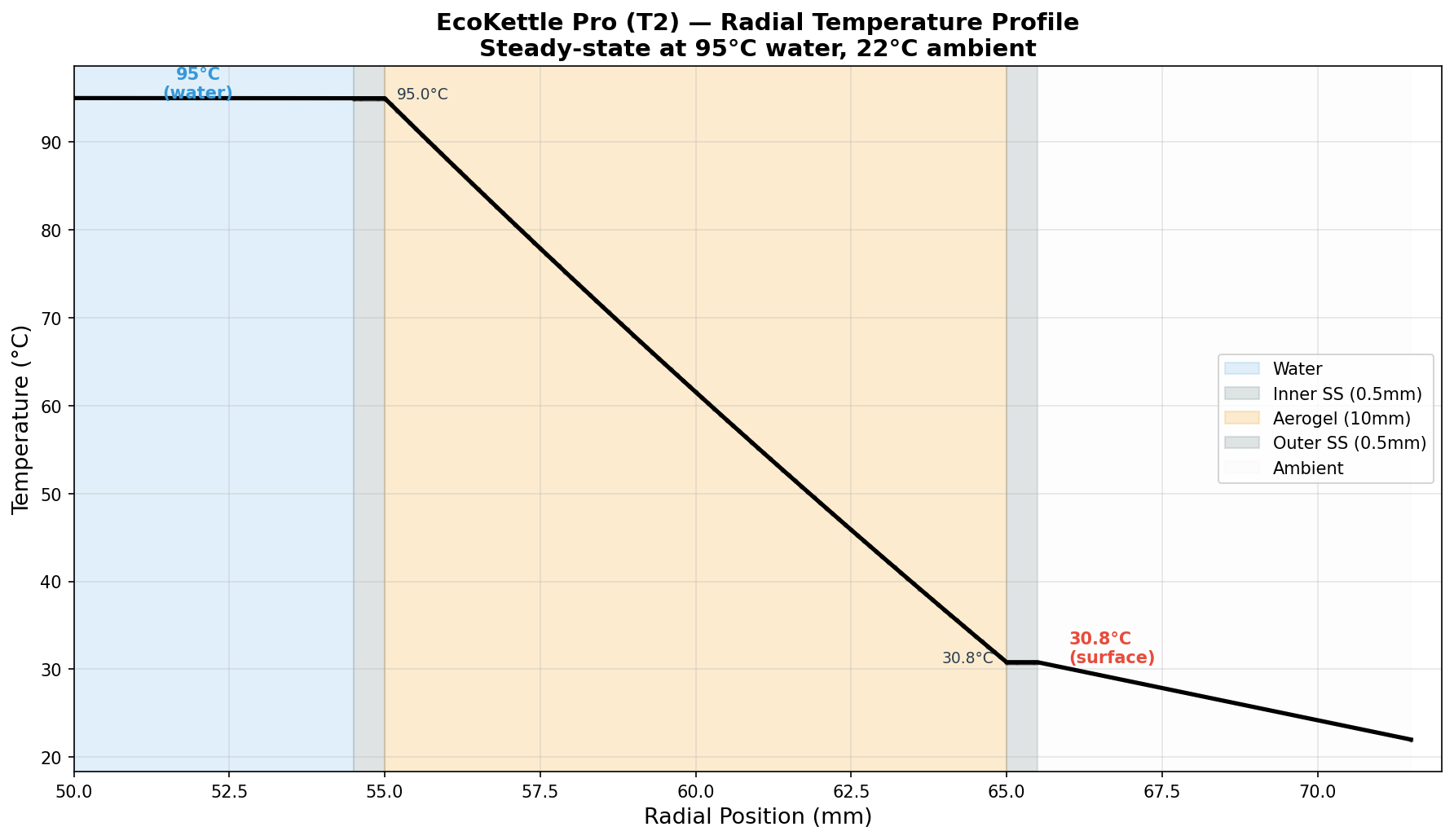

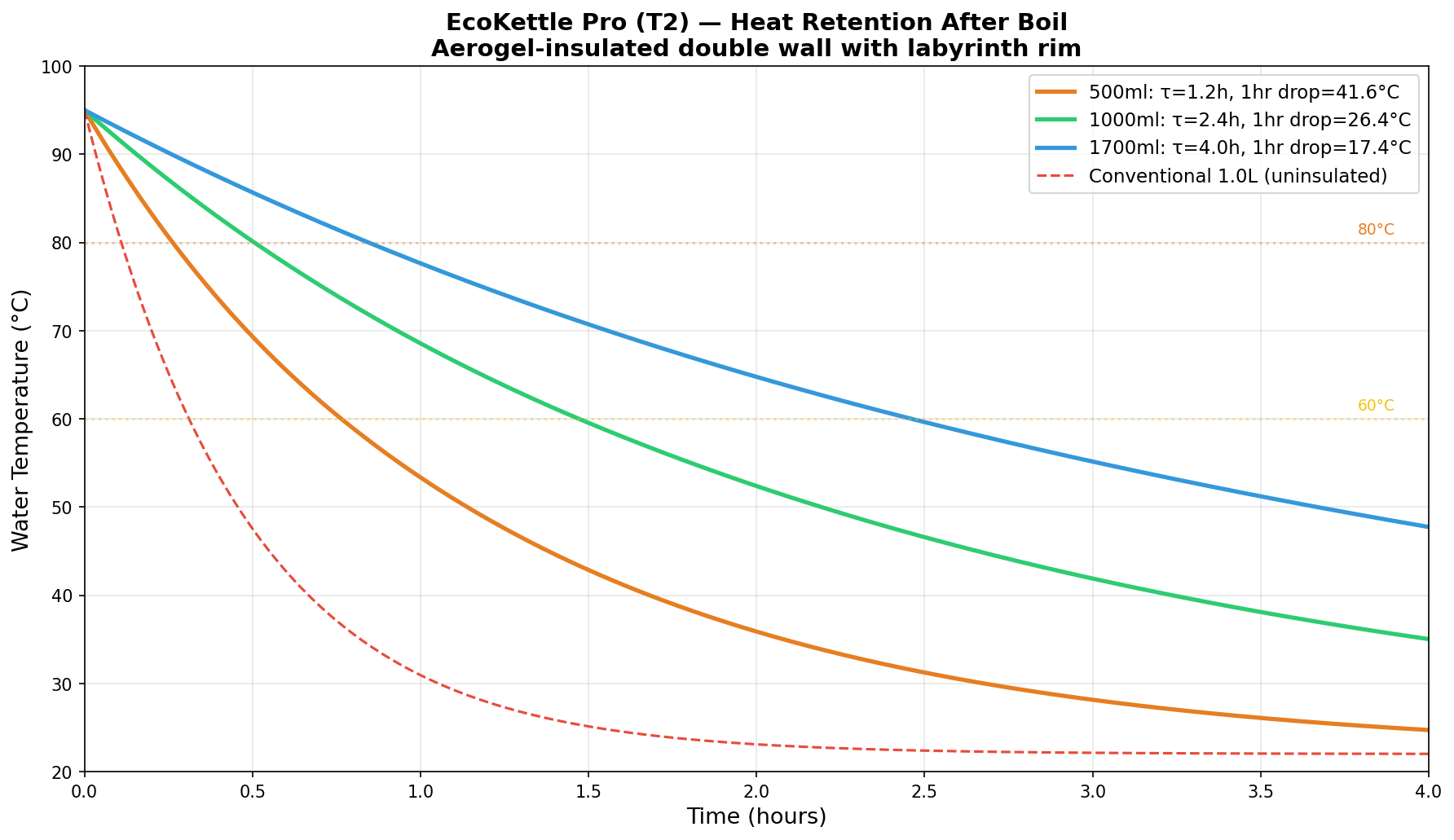

Thermal simulation outputs including heating curves, heat retention performance, thermal gradient visualization, energy breakdown analysis, and heater stack configuration diagrams.
LiveThermal Heatmap
Temperature distribution mapped onto 3D geometry with cross-section and exterior views. Interactive HTML heatmap with layer-by-layer thermal gradient exploration.
LiveFluid Dynamics & CFD
Computational fluid dynamics simulation of Rayleigh-Bénard convection inside the kettle cavity. Velocity fields, temperature contours, Rayleigh number evolution, and animated convection flow.
LiveNucleate Boiling Dynamics

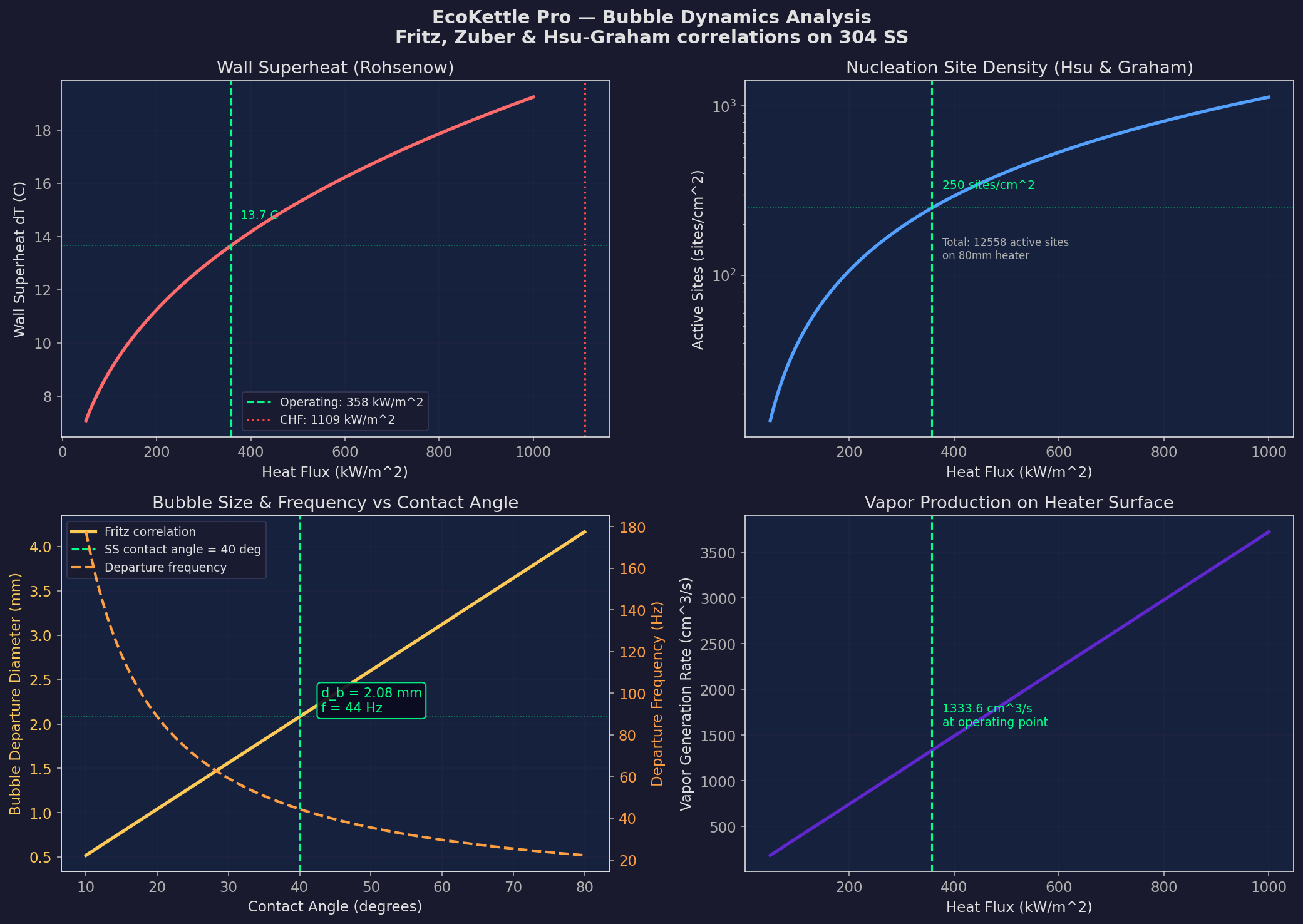

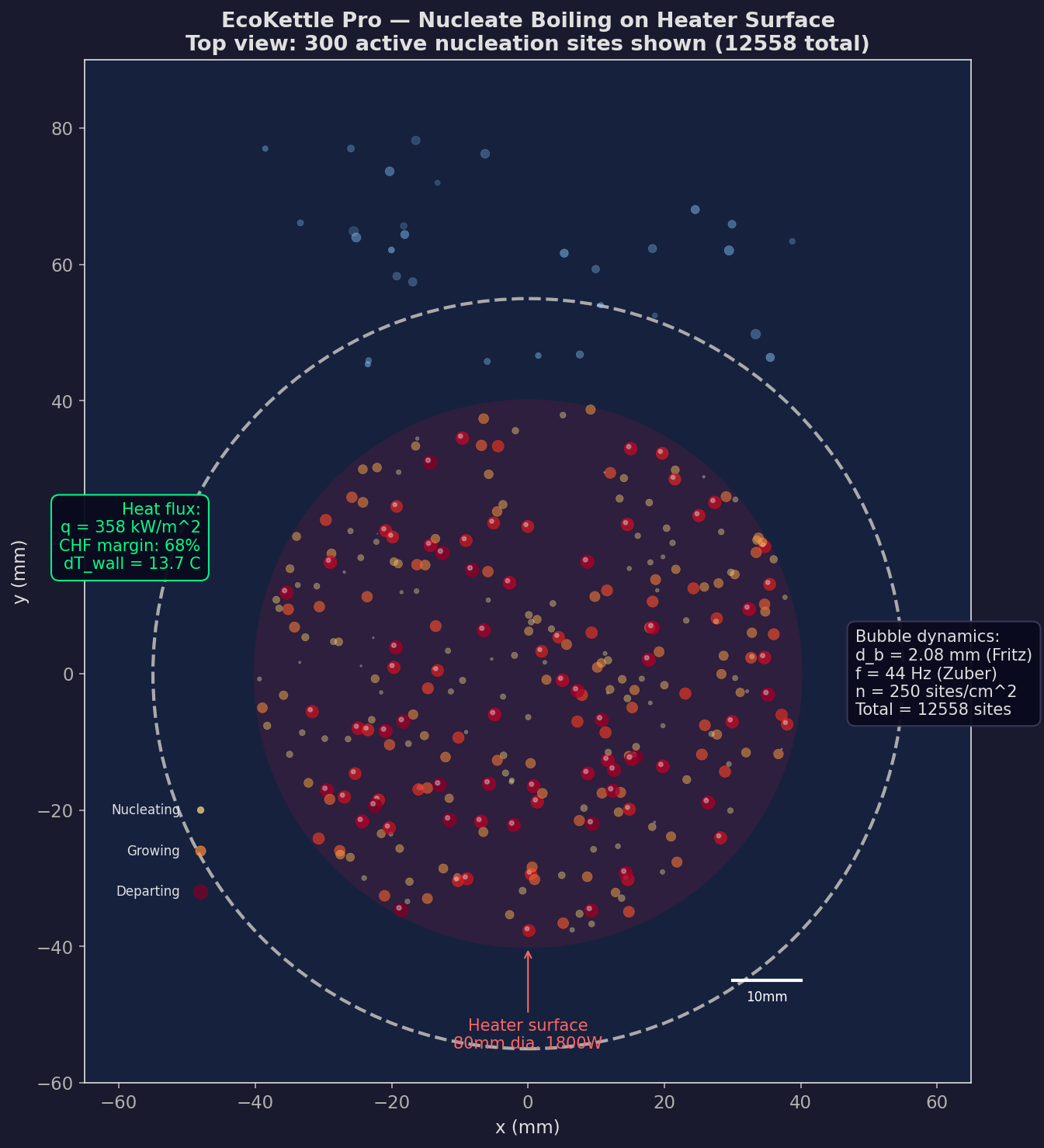

Physics-based analysis of boiling regimes, bubble departure dynamics, nucleation site density, and acoustic signature. Proves the <58 dB quiet boiling claim through first-principles thermodynamics.
LiveIndustrial Design Review
Expert industrial design analysis covering CMF specification, ergonomic assessment, design for manufacturing review, and competitive product audit.
LiveProduct Renders
Blender 3D Renders
Thermal Simulation
Thermal Heatmap

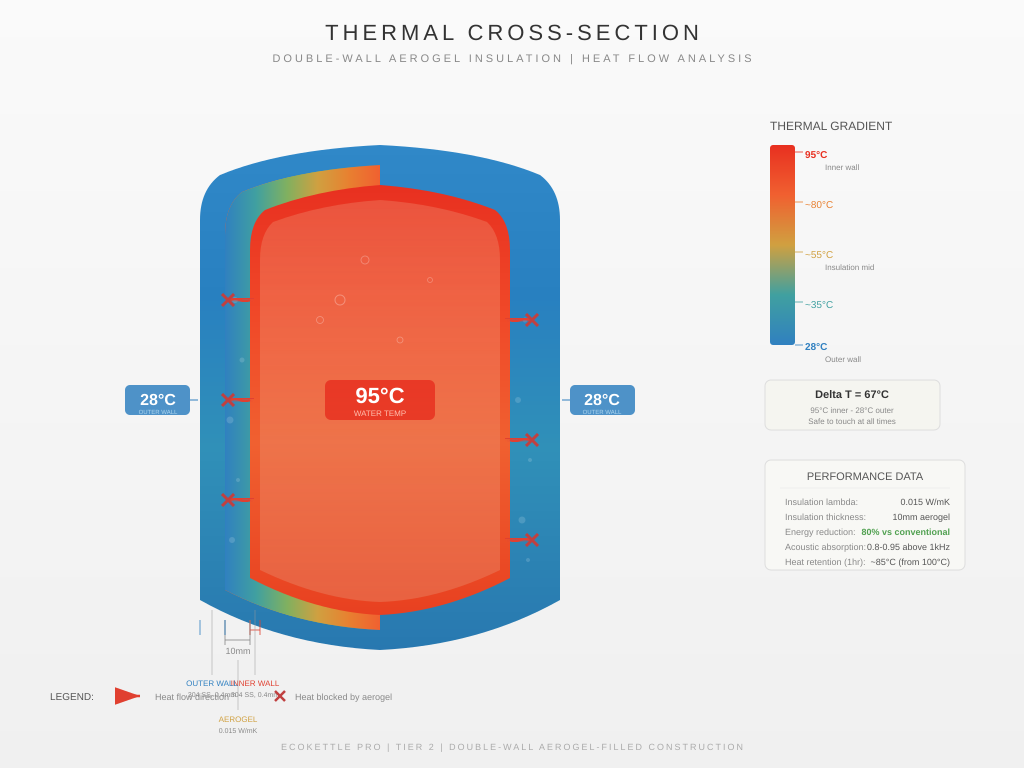

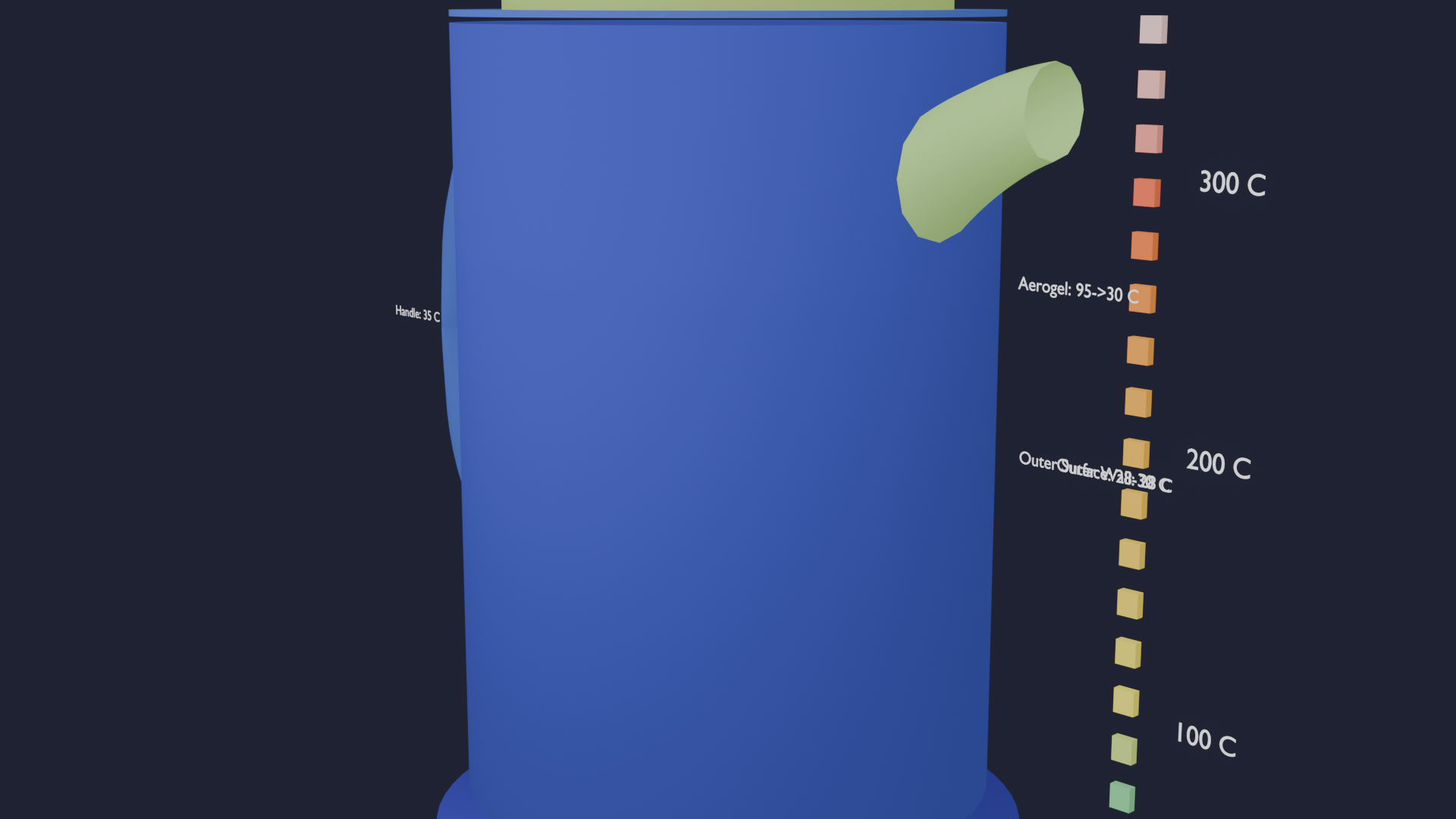

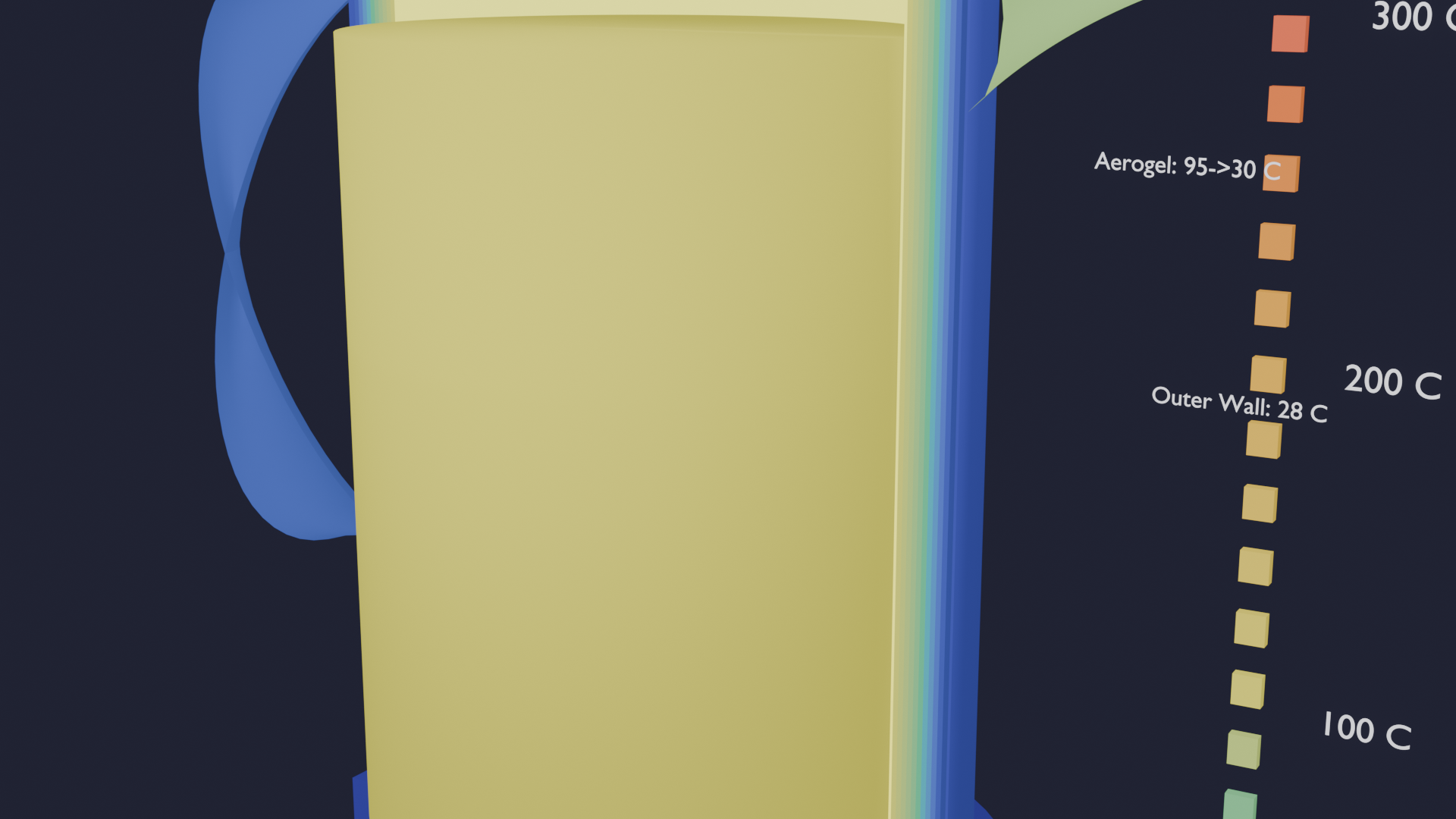

Temperature distribution mapped onto 3D geometry. Cross-section shows the dramatic 95°C → 30°C gradient through aerogel insulation — validating the vacuum-insulated double-wall design keeps the exterior cool to touch while water reaches full boil inside.
Fluid Dynamics & CFD

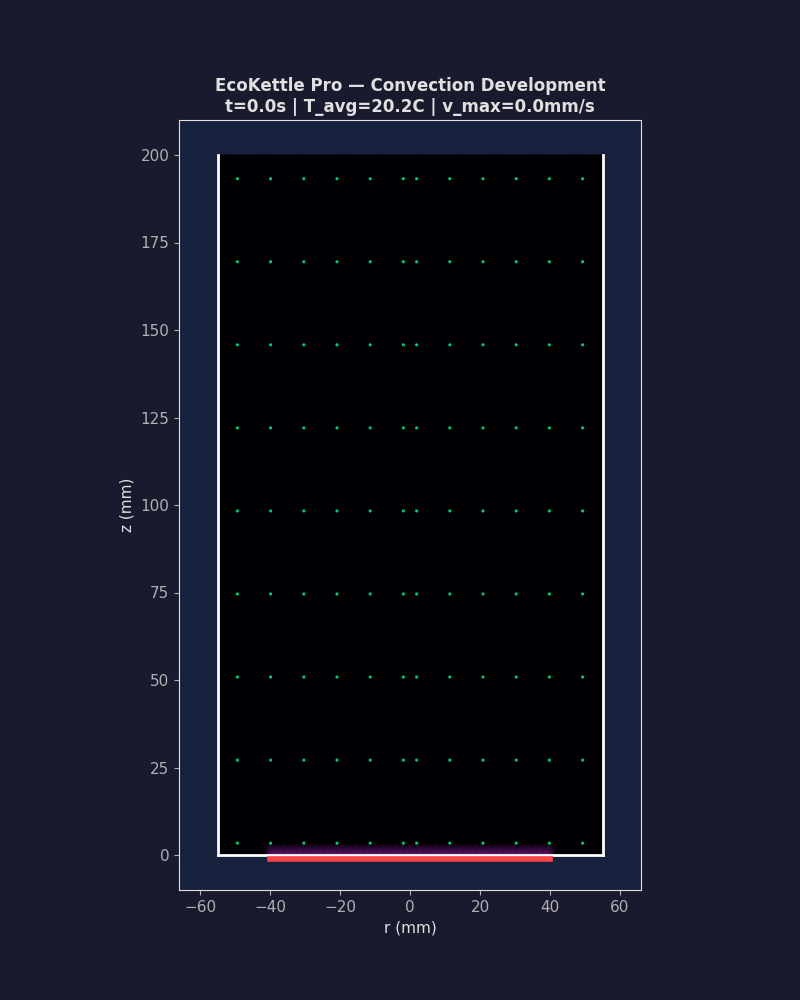

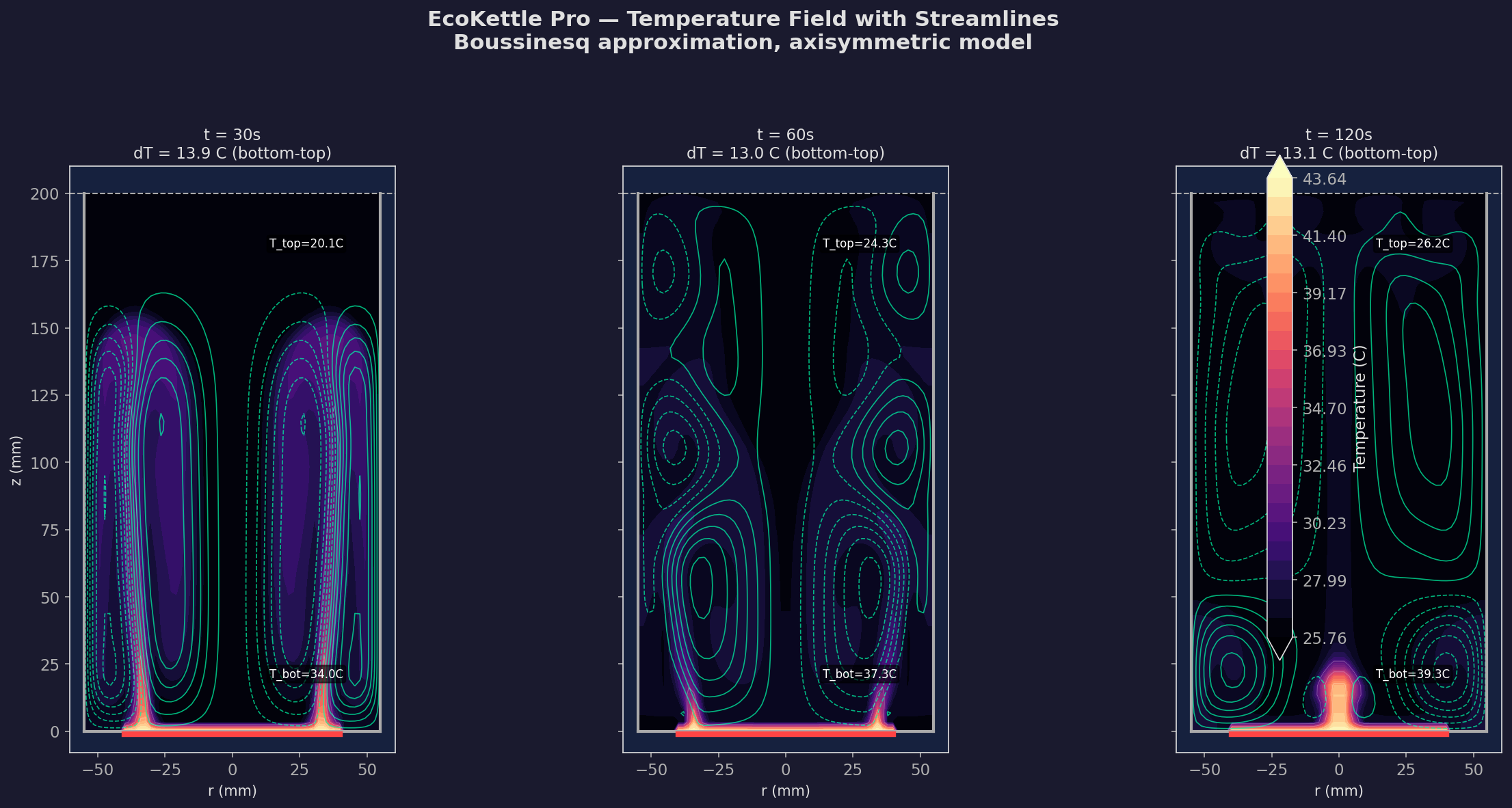

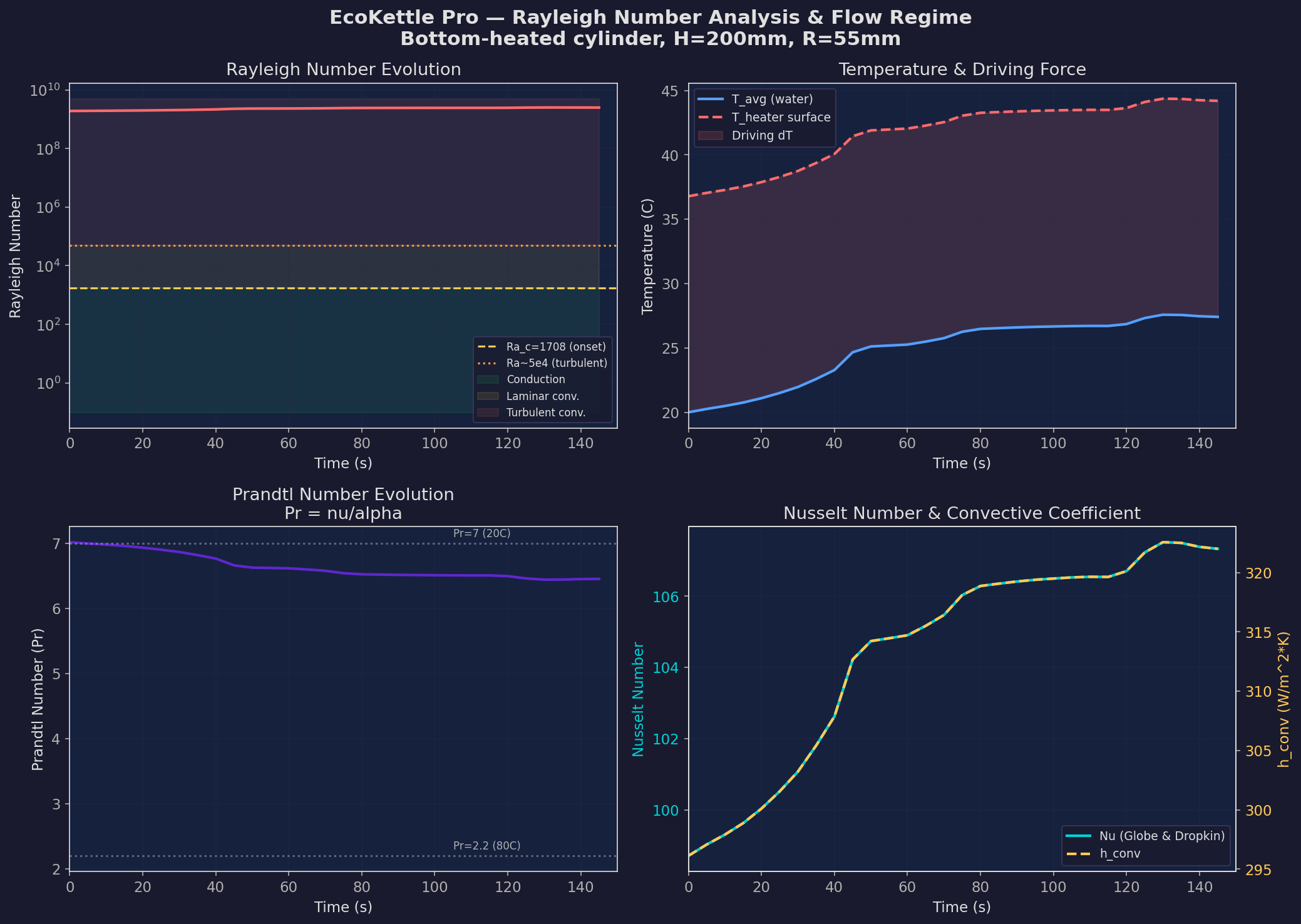

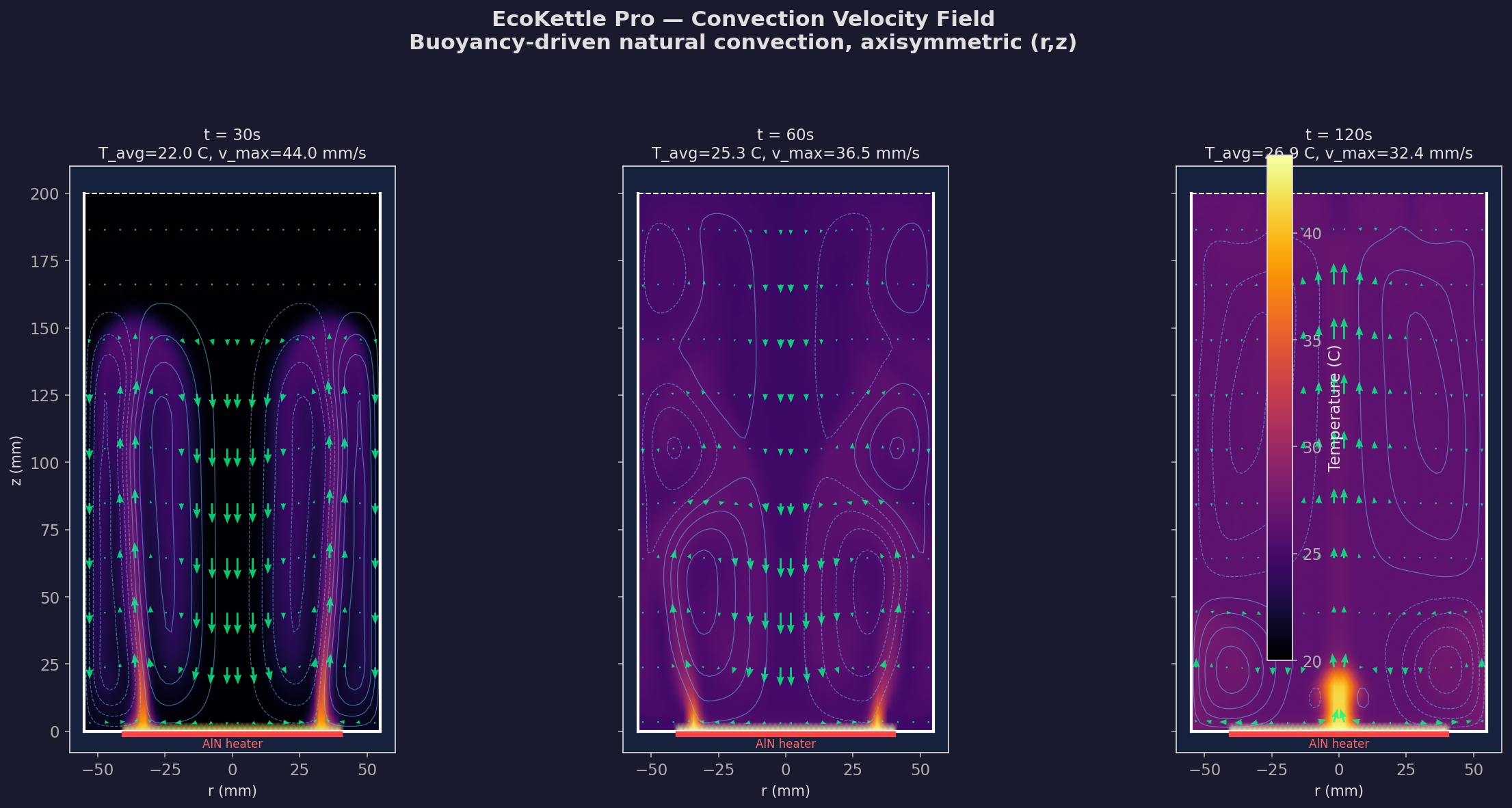

Rayleigh-Bénard convection simulation of the water volume inside the kettle cavity. Natural convection drives heat distribution from the bottom heating element through the full water column, transitioning from laminar to fully turbulent flow as temperature rises.
Nucleate Boiling Dynamics

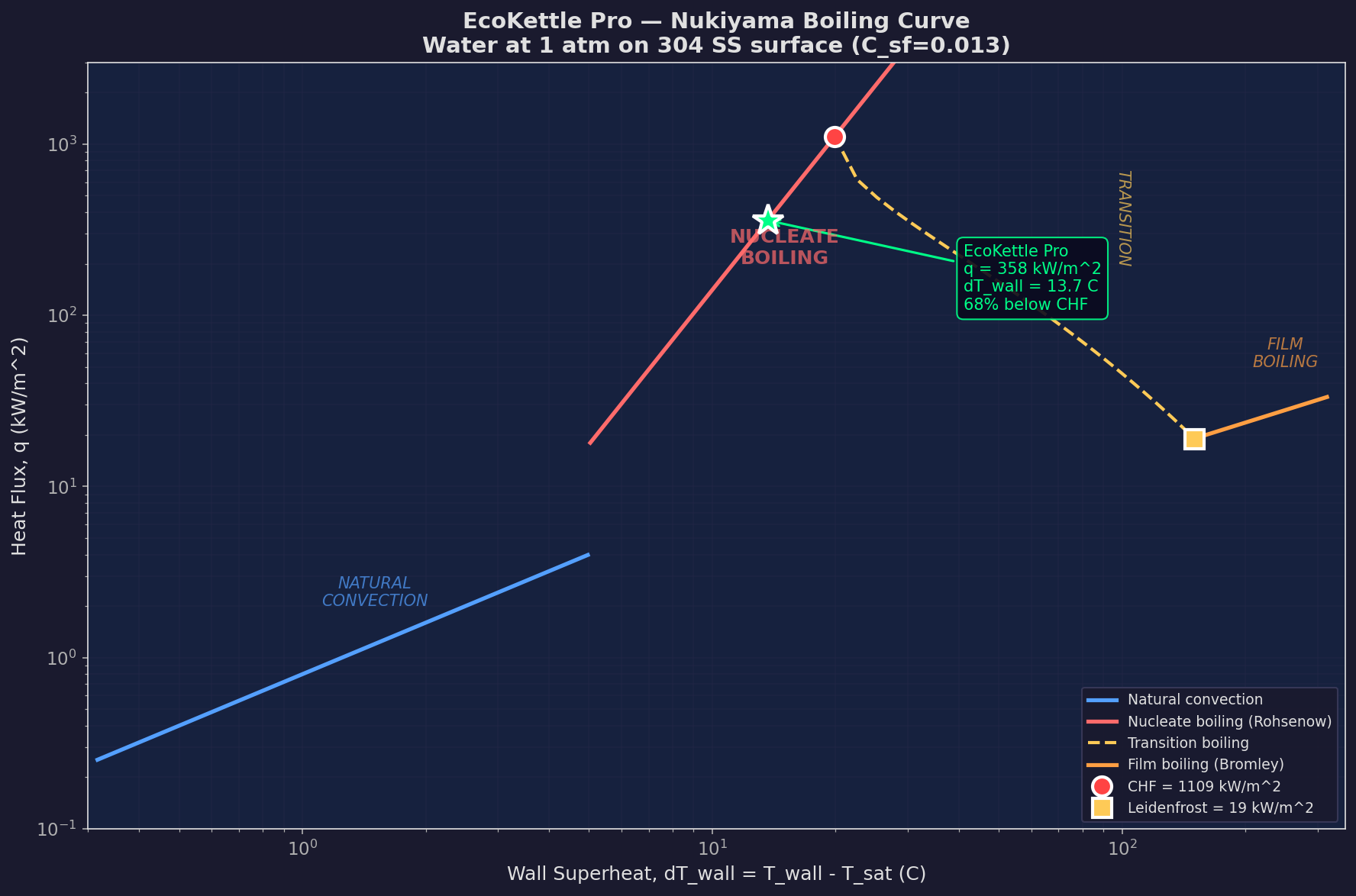

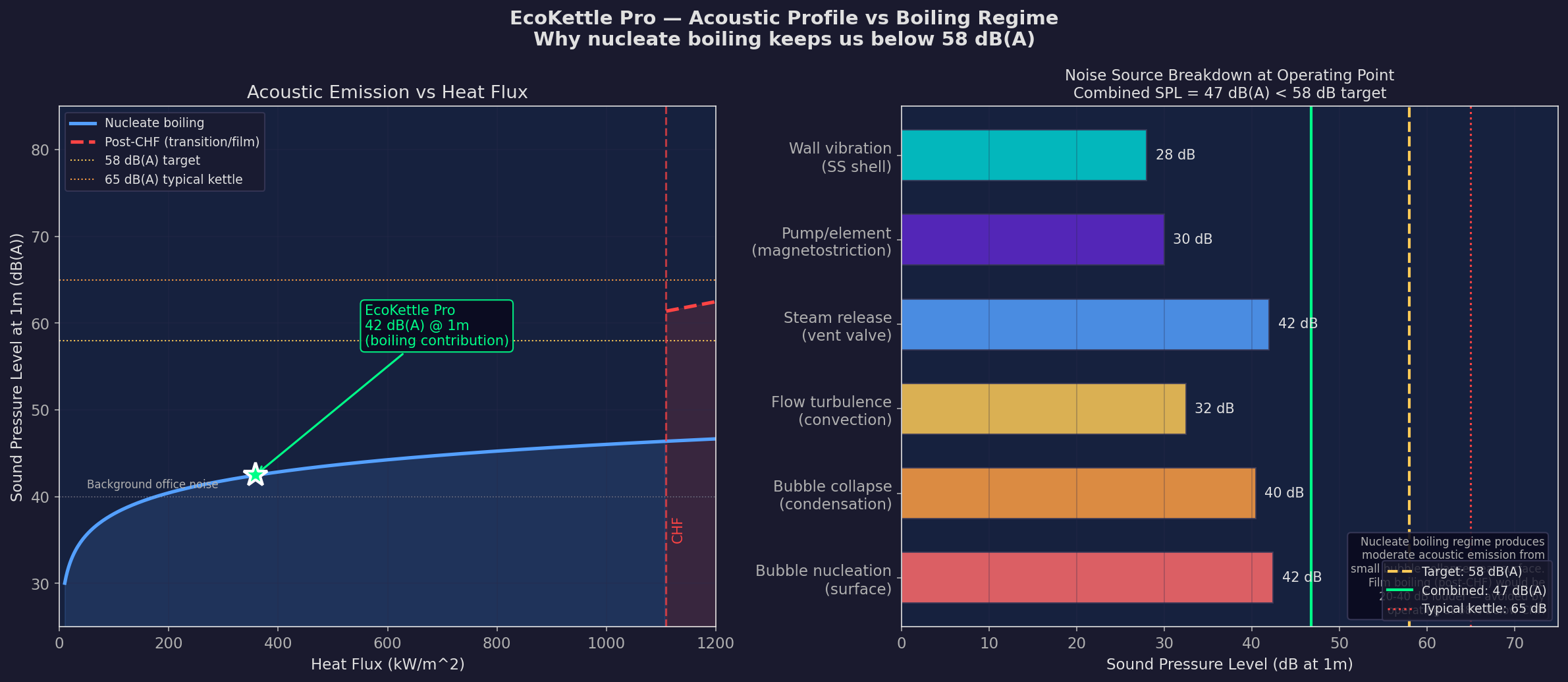

First-principles analysis of the boiling process inside the EcoKettle Pro, proving the <58 dB quiet boiling claim through physics. The operating heat flux sits safely in the nucleate boiling regime at 2.5× below the critical heat flux threshold.
FDRP Run Details
This engineering package was produced by FDRP Run 1010, a multi-wave Failure-Driven Recursive Pipeline execution targeting complete product engineering from concept to production-ready deliverables.
- Run ID
1010- Pipeline
- EcoKettle Pro Engineering
- Status
- Wave 1 complete, Waves 2-3 auto-executing
- Output
- 19 deliverables, 8 Blender 3D renders + animation, 4 physics simulations (CFD, boiling, thermal heatmap), 16 parametric components, industrial design review
